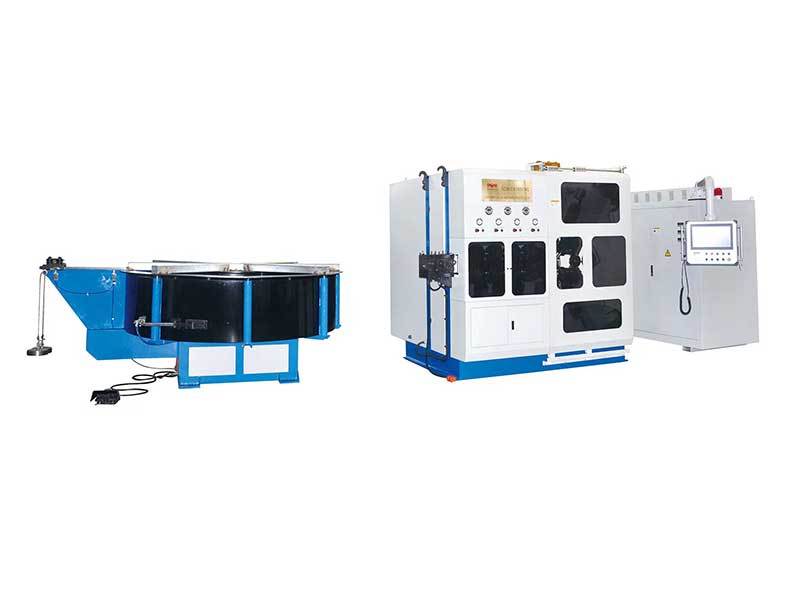

SCM-6140/6120CNC
keyword：Spring Machinery
Category：
Product Description
Luoyang Machinery Co.,Ltd is located in the Key Production Base of China Spring Machinery- Luoyang, which is world famous for Famous Chinese Historical & Cultural City, Ancient Imperial Capital, Peony Flower City. As a Hi-tec and new technology enterprise in specialized in producing CNC spring machines and accessories, it is a pioneer and leader and has been listed as a vice chairman unit of China National Spring Profession Association.
|
Model |
SCM-C6140CNC |
SCM-C5140CNC |
SCM-C6120CNC |
SCM-C5120CNC |
|
|
Wire dia |
φ8—φ14mm |
φ8—φ14mm |
φ6—φ12mm |
φ6—φ12mm |
|
|
Max O.D of spring |
φ150mm |
φ150mm |
φ150mm |
φ150mm |
|
|
Wire feeding length |
unlimited |
unlimited |
unlimited |
unlimited |
|
|
Wire feeding speed |
fast 60m/min slow 40m/min |
fast 60m/min slow 40m/min |
fast 60m/min slow 40m/min |
fast 60m/min slow 40m/min |
|
|
Wire feeding accuracy |
± 0.1mm |
±0.1mm |
±0.1mm |
±0.1mm |
|
|
Motor |
Wire feeding axis |
30 Kw |
30 Kw |
30 Kw |
30 Kw |
|
Wire cutting axis |
15Kwx2 |
15Kwx2 |
15Kwx2 |
15Kwx2 |
|
|
Diameter axis |
4.4 Kwx2 |
11 Kw |
2.9 Kwx2 |
11 Kw |
|
|
Pitch axis |
4.4 Kw |
4.4 Kw |
2.9 Kw |
2.9 Kw |
|
|
Net weight |
19000 Kg |
17000 Kg |
18000 Kg |
16500 Kg |
|
|
Machine dimension |
2550x 1650x 2250mm |
2550 x1650 x2250mm |
2350 x 1650 x 2250mm |
2350 x1650 x 2250mm |
|
|
Power |
Three phase 380V. AC. 50HZ |
||||
