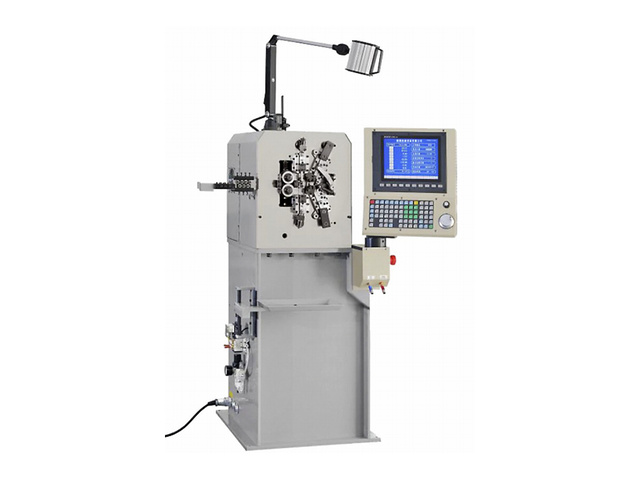

SCM-C808
keyword：Spring Machinery
Category：
Product Description
| Model | XD-808 |
| Wire Diameter | Ç0.1-0.8mm |
| O.D | Ç25mm |
| Production Rate | 1000pcs/min |
| Feed Length | unlimited |
| Wire Feed | 0.75kw |
| Cutter | 0.4kw*2 |
| OD Axis | 0.4kw*2 |
| Pitch | 0.4kw |
| Arbor back- and-forth | 0.4kw |
| Arbor up- and- down | 0.4kW |
| Monitor Display | Chinese/English |
| Max. Value | 99999.99mm |
| Min.Value | 0.02mm |
| Memory | 150 Programs Max 999 Lines for each program |
| Machine Dimension | 100*70*1 35cm |
| Machine Weight | 580kgs |
| Power | 220v 3p 50/60hz |
Luoyang Machinery Co.,Ltd is located in the Key Production Base of China Spring Machinery- Luoyang, which is world famous for Famous Chinese Historical & Cultural City, Ancient Imperial Capital, Peony Flower City. As a Hi-tec and new technology enterprise in specialized in producing CNC spring machines and accessories, it is a pioneer and leader and has been listed as a vice chairman unit of China National Spring Profession Association.
