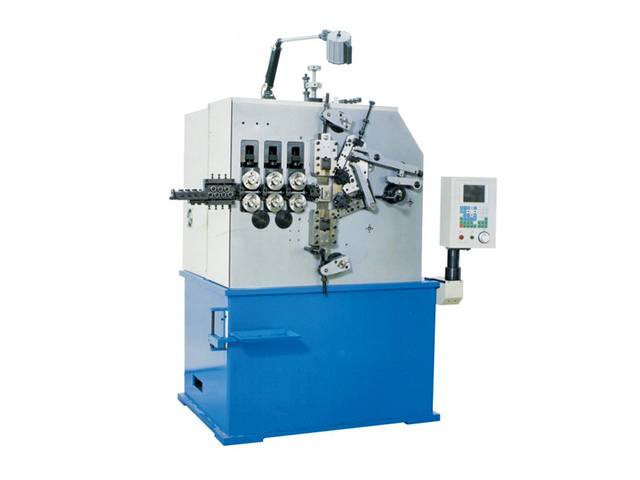

SCM-C240
keyword：Spring Machinery
Category：
Product Description
| Model | XD-240 | XD-250 |
| Wire Diameter | Ç 1.5-4.0mm | Ç 2.0-5.0mm |
| O.D | Ç 65mm | Ç 80mm |
| Production Rate | 1 50pcs/min | 100pcs/min |
| Feed Length | unlimited | unlimited |
| Feed Speed | 65m/min | 54m/min |
| Feed(Y)Axis | 5.5Kw | 7.5Kw |
| Cam(X)Axis | 7.5Kw | 7.5Kw |
| Monitor Display | Chinese/English | Chinese/English |
| Max. Value | X:359.9° Y:9999. 9mm | X:359.9° Y:9999. 9mm |
| Min.Value | X:0.10 Y:0.01 mm | X:0.10 Y:0.01 mm |
| Memory | 1 50 Programs max 999 Lines for each program | 1 50 Programs max 999 Lines for each program |
| Machine Dimension | 175*128*1 95cm | 175*128*1 95cm |
| Machine Weight | 1 800kgs | 2000kgs |
| Power | 380v 3p 50/60hz | 380V 3p 50/60hz |
Luoyang Machinery Co.,Ltd is located in the Key Production Base of China Spring Machinery- Luoyang, which is world famous for Famous Chinese Historical & Cultural City, Ancient Imperial Capital, Peony Flower City. As a Hi-tec and new technology enterprise in specialized in producing CNC spring machines and accessories, it is a pioneer and leader and has been listed as a vice chairman unit of China National Spring Profession Association.
